K400 40 Kg

K400 40 Kg

K400 40 Kg

K400 40 Kg

Technical Data

Dimensional tolerances are defined by technical specifications. Possibility of customising the spool.

Original metal spool

Made of steel wire.
Suitable for both high precision layer and random winding.
Options: uncoppered/painted.

External diameter

400 mm

External width

212 mm

Diameter winding wire

188 mm

Aluminum welding wire capacity

40 kg


This spool is made of 8mm diameter drawn steel wire for the ring, and 6mm diameter sectors. Geometries and tolerances allow a capacity of up to 40 kg of aluminium wire, it is supplied painted and can be customised according to client’s needs.
These spools are designed for both random and high precision layer winding at medium/high speed. The painting has excellent adhesion and is wear-resistant.
It meets the criteria of UNI EN ISO 544:2018 norm, Table 4. It meets high environmental standards; thanks to the materials and processing methods used it is 100% recyclable, minimising disposal costs.

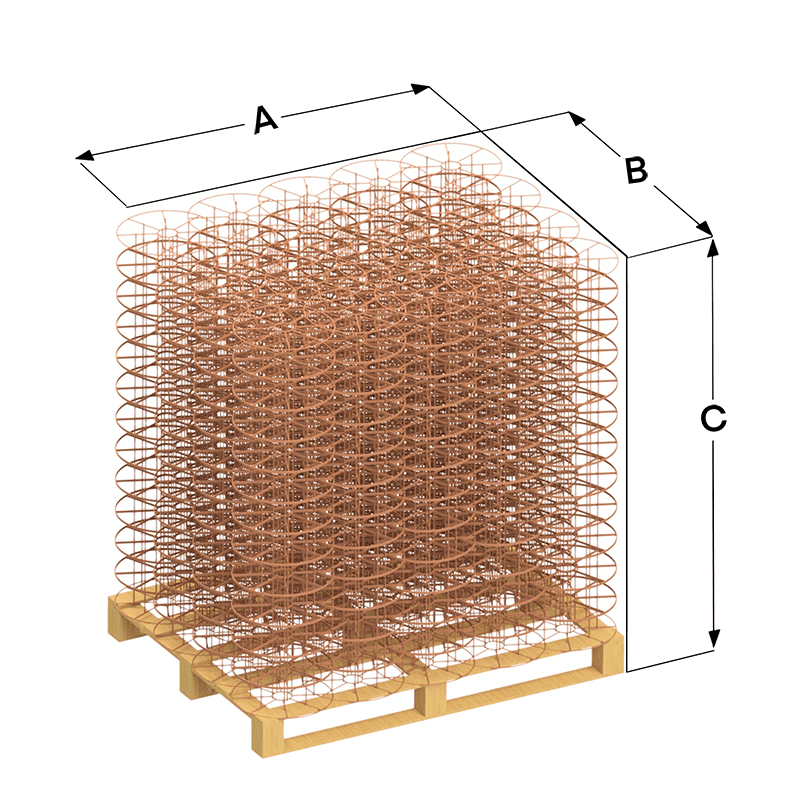

Option 1 = 60 pcs

A x B x C = 1200 x 940 x 1180 = 112 kg
