K300 18 Kg
K300 18 Kg
Technical Data
Dimensional tolerances are defined by technical specifications. Possibility of customising the spool.
Original metal spool
Made of coppered steel wire.
Suitable for both high precision layer and random winding.
Options: coppered/painted/uncoppered.
External diameter
300 mm
External width
98 mm
Diameter winding wire
188 mm
Welding wire capacity
18 kg
Description
This spool is made of drawn steel coppered or uncoppered wire with a diameter of 4,00 mm. Its capacity is of 18 kg and can be supplied both drawn and painted. In addition, it is customisable according to client’s needs.
K spools are built for random and high precision layer winding at medium/high speed.
It meets the criteria of UNI EN ISO 544:2018 norm, Table 4. It meets high environmental standards; thanks to the materials and processing methods used it is 100% recyclable, minimising disposal costs.

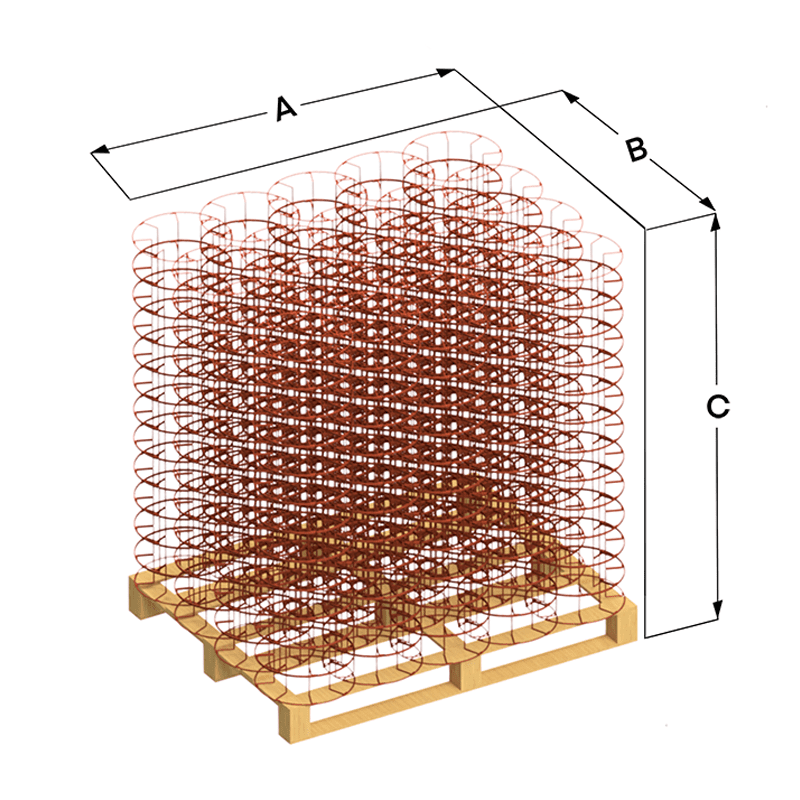

Packaging
Option 1 = 240 pcs
A x B x C = 1200 x 940 x 1350 = 90 kg
Option 2 = 260 pcs
A x B x C = 1200 x 940 x 1425 = 98 kg
